A structural column with a type two base plate connects to the top of a reinforced wall as sized per plan. Two continuous number four reinforcing bars run horizontally within the wall assembly below the variable finish grade. A deck and topping assembly ties into the wall with a ledger and connection where applicable. A window wall assembly interfaces with the upper column and wall intersection per architectural drawings.

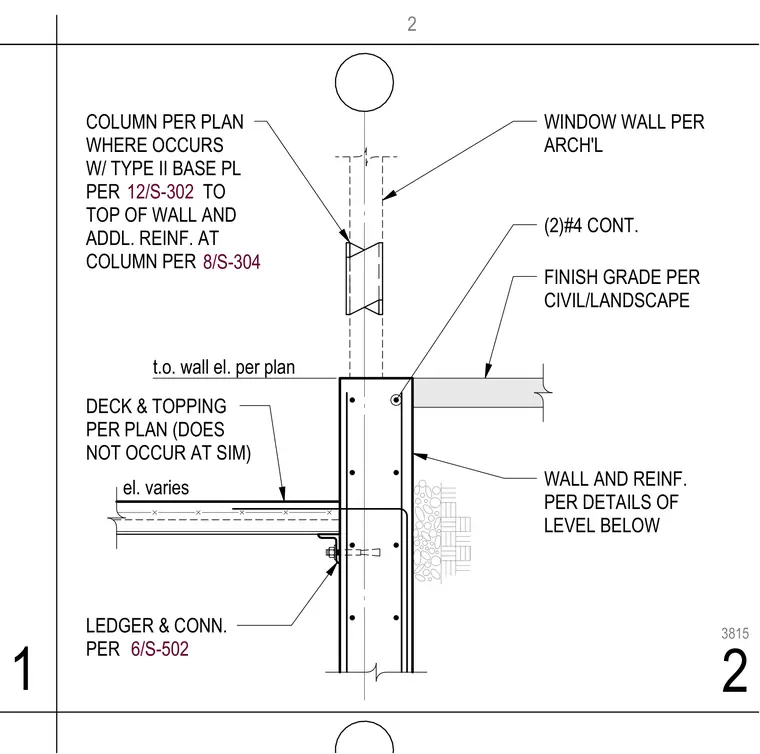

WALL AND REINF. PER DETAILS OF LEVEL BELOW t.o. wall el. per plan COLUMN PER PLAN WHERE OCCURS W/ TYPE II BASE PL PER TO TOP OF WALL AND ADDL. REINF. AT COLUMN PER 12/S-302 WINDOW WALL PER ARCH'L LEDGER & CONN. PER 6/S-502 DECK & TOPPING PER PLAN (DOES NOT OCCUR AT SIM) el. varies FINISH GRADE PER CIVIL/LANDSCAPE (2)#4 CONT. 8/S-304 2 1 2 3815
