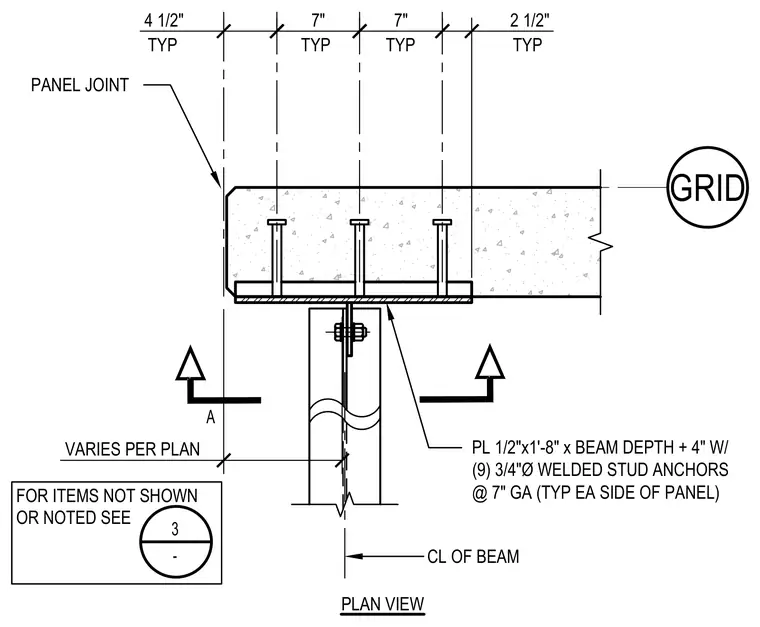

A precast concrete wall panel aligns with a building grid and connects to a supporting steel beam below. A steel plate measuring 1/2 inch by 1-8 inches by the beam depth plus 4 inches is embedded into the concrete panel. Nine 3/4-inch diameter welded stud anchors are spaced at 7 inches on center on each side of the panel. A bolted connection secures the assembly at the centerline of the beam.
GRID 4 1/2" 7" 7" 2 1/2" PANEL JOINT CL OF BEAM PL 1/2"x1'-8" x BEAM DEPTH + 4" W/ (9) 3/4"Ø WELDED STUD ANCHORS @ 7" GA (TYP EA SIDE OF PANEL) FOR ITEMS NOT SHOWN OR NOTED SEE TYP TYP TYP TYP PLAN VIEW A 3 - VARIES PER PLAN
