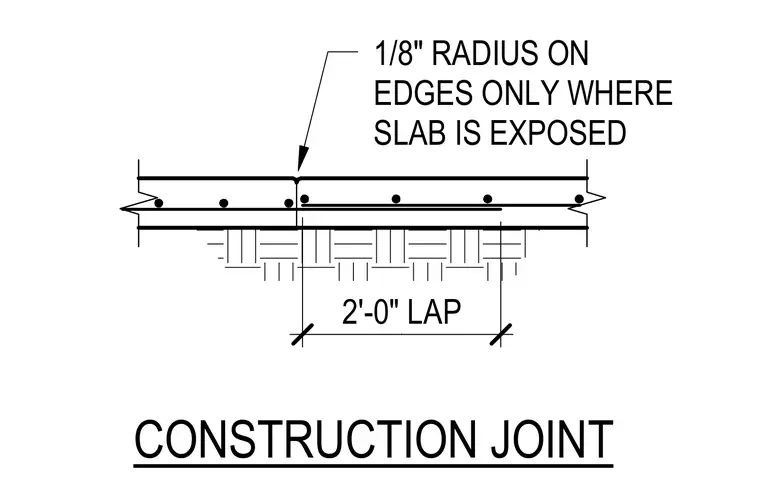

This concrete slab construction joint features a two-foot lap splice in the reinforcing steel across the joint interface. An one-eighth-inch radius is applied to the slab edges only where the concrete remains exposed.
