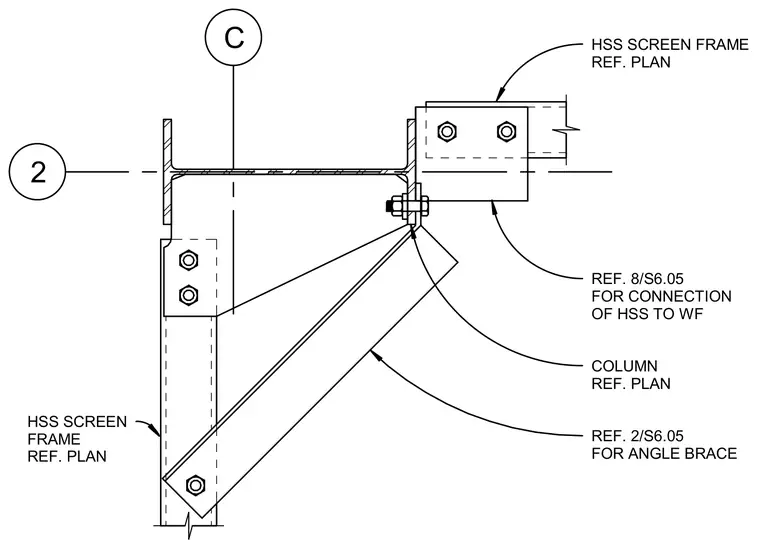

A hollow structural section mechanical screen frame connects to a wide flange column using bolted bracket connections and an angle brace. The framing utilizes gusset plates and structural angles fastened with bolts as referenced on the structural plans. The diagonal angle brace ties back to the column support to stabilize the mechanical screen framework.
C 2 HSS SCREEN FRAME REF. PLAN REF. 8/S6.05 FOR CONNECTION OF HSS TO WF COLUMN REF. PLAN REF. 2/S6.05 FOR ANGLE BRACE HSS SCREEN FRAME REF. PLAN
