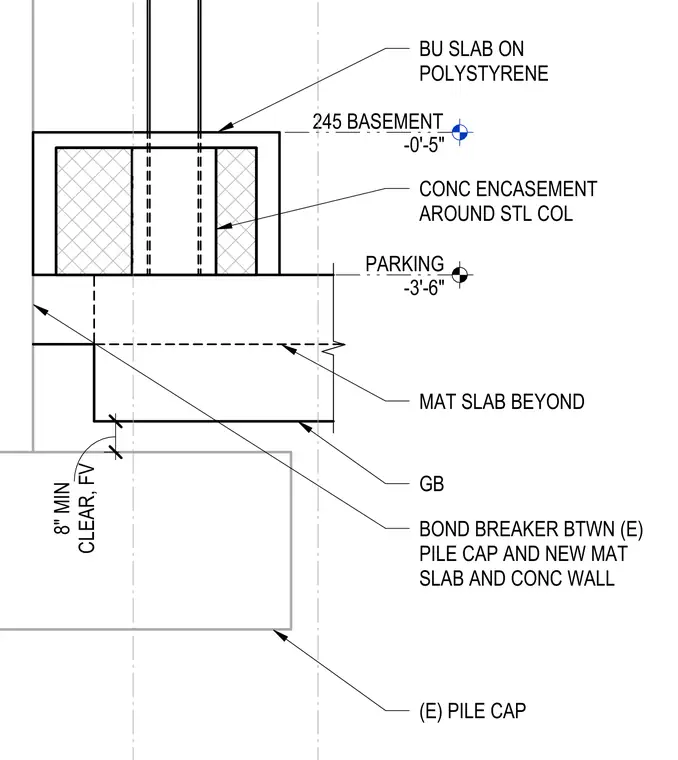

A bond breaker is installed between the existing pile cap and the new mat slab and concrete wall. The assembly features a concrete encasement around the structural steel column bearing on or passing through the existing pile cap. A built-up slab on polystyrene sits adjacent to the vertical concrete enclosure. An eight-inch minimum clear distance is maintained.
245 BASEMENT -0'-5" PARKING -3'-6" BU SLAB ON POLYSTYRENE CONC ENCASEMENT AROUND STL COL MAT SLAB BEYOND CLEAR, FV 8" MIN GB BOND BREAKER BTWN (E) PILE CAP AND NEW MAT SLAB AND CONC WALL (E) PILE CAP
