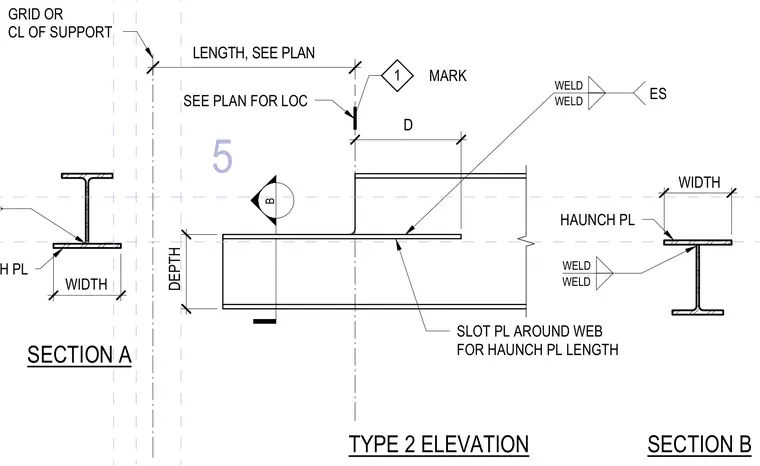

A haunch plate is welded to the structural steel member with welds specified on both sides. The web is slotted around the haunch plate for its specified length. Dimensions indicate the depth, width, and length of the haunch plate relative to the grid or centerline of support and specified plan locations.
B 12" WIDTH HAUNCH PL SECTION A TYPE 2 ELEVATION 1 GRID OR CL OF SUPPORT SEE PLAN FOR LOC SLOT PL AROUND WEB FOR HAUNCH PL LENGTH DEPTH ES WELD WELD MARK 13 1/4" D 12" WIDTH HAUNCH PL WELD WELD SECTION B LENGTH, SEE PLAN 5
