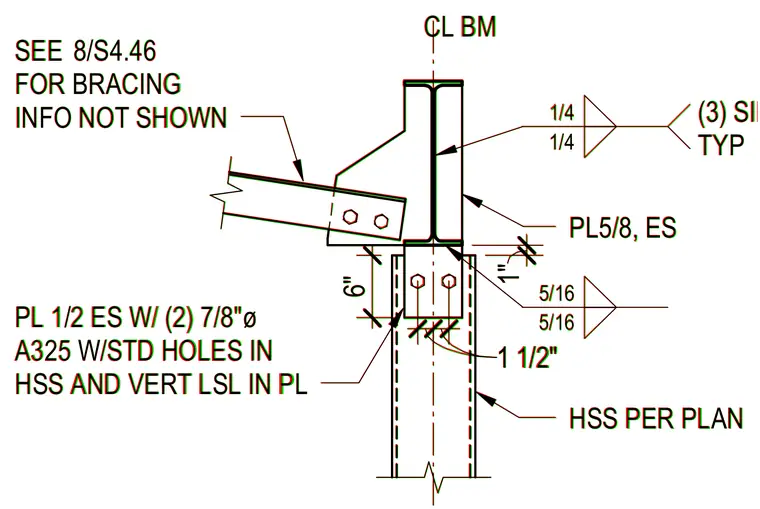

A hollow structural section column supports a steel beam with a one-inch gap and a five-eighths-inch plate on each side welded with quarter-inch fillet welds on three sides typically. A half-inch plate on each side connects to the vertical laminated strand lumber member using two seven-eighths-inch diameter A325 bolts with standard holes in the hollow structural section and vertical laminated strand lumber in the plate. Five-sixteenths-inch fillet welds secure the plate to the column assembly. Additional bracing information is referenced on sheet 8/S4.46.
5/16 5/16 PL5/8, ES (3) SIDES, TYP 1/4 1/4 CL BM 1 1/2" 1 1/2" 6" HSS PER PLAN PL 1/2 ES W/ (2) 7/8"ø A325 W/STD HOLES IN HSS AND VERT LSL IN PL SEE FOR BRACING INFO NOT SHOWN 8/S4.46 1" 5/16 5/16 PL5/8, ES (3) SIDES, TYP 1/4 1/4 CL BM 1 1/2" 1 1/2" 6" HSS PER PLAN PL 1/2 ES W/ (2) 7/8"ø A325 W/STD HOLES IN HSS AND VERT LSL IN PL SEE FOR BRACING INFO NOT SHOWN 8/S4.46 1"
