Typical Suspended Concrete Encased Ductbank

Materials

Elements

About this detail

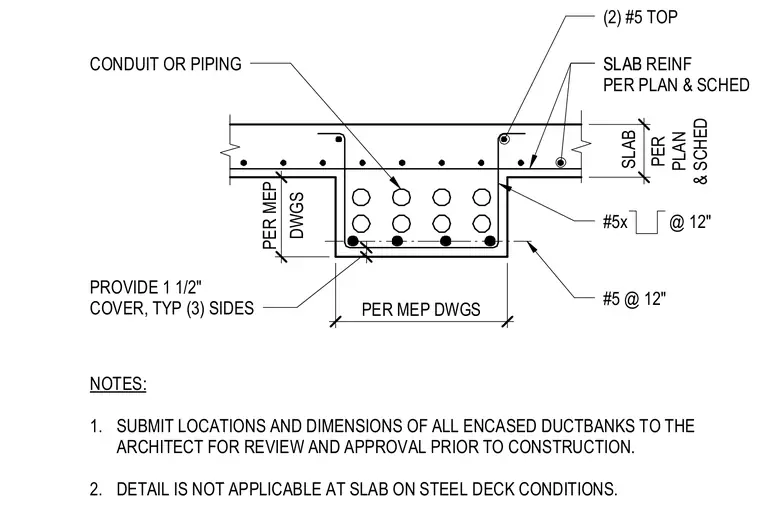

A typical suspended concrete-encased ductbank encloses multiple conduits or piping runs. The concrete encasement provides one and one-half inches of typical concrete cover on three sides. Reinforcement includes two number five top bars, a number five stirrup at twelve inches on center, and longitudinal reinforcement sized per plan and schedule. The slab reinforcement and thickness are coordinated per the architectural and mechanical, electrical, and plumbing drawings. This detail is not applicable at slab-on-steel-deck conditions, and ductbank locations and dimensions must be submitted to the architect for review prior to construction.
