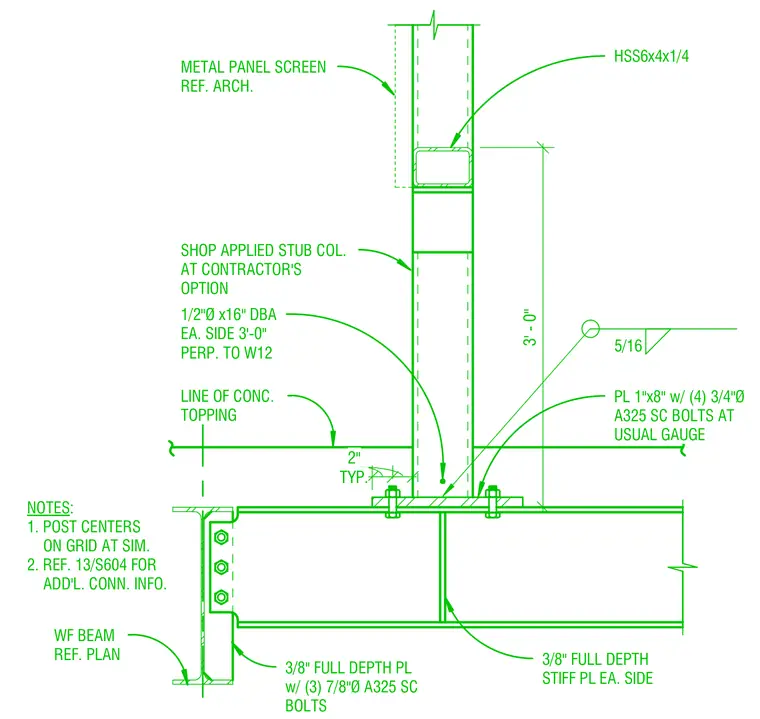

An HSS6x4x1/4 structural steel tube serves as a screen wall support and connects to an optional shop-applied stub column above a concrete topping slab. The base plate measures 1 inch by 8 inches and secures with four three-quarter-inch-diameter A325 slip-critical bolts at usual gauge. A 3/8-inch-thick full-depth plate with three 7/8-inch-diameter A325 slip-critical bolts connects the supporting wide-flange beam, aided by 3/8-inch full-depth stiffener plates on each side and a pair of 1/2-inch-diameter by 16-inch deformed bar anchors on each side perpendicular to the beam. A 5/16-inch fillet weld secures the assembly components. The post centers on the grid, and metal panel screens attach to the exterior per architectural drawings.
METAL PANEL SCREEN REF. ARCH. SHOP APPLIED STUB COL. AT CONTRACTOR'S OPTION 3' - 0" LINE OF CONC. TOPPING TYP. 2" TYP. 2" NOTES: 1. POST CENTERS ON GRID AT SIM. 2. REF. 13/S604 FOR ADD'L. CONN. INFO. WF BEAM REF. PLAN 3/8" FULL DEPTH PL w/ (3) 7/8"Ø A325 SC BOLTS 3/8" FULL DEPTH STIFF PL EA. SIDE PL 1"x8" w/ (4) 3/4"Ø A325 SC BOLTS AT USUAL GAUGE 5/16 HSS6x4x1/4 1/2"Ø x16" DBA EA. SIDE 3'-0" PERP. TO W12
