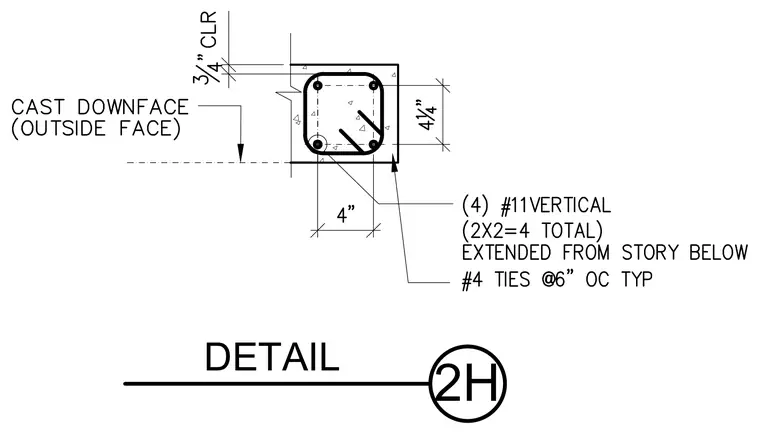

A reinforced concrete column section is detailed with four number eleven vertical reinforcing bars arranged in a two-by-two configuration extending from the story below. Transverse reinforcement consists of number four ties spaced at six inches on center typically. The outside face is designated as the cast downface with a three-quarter-inch concrete clearance.
