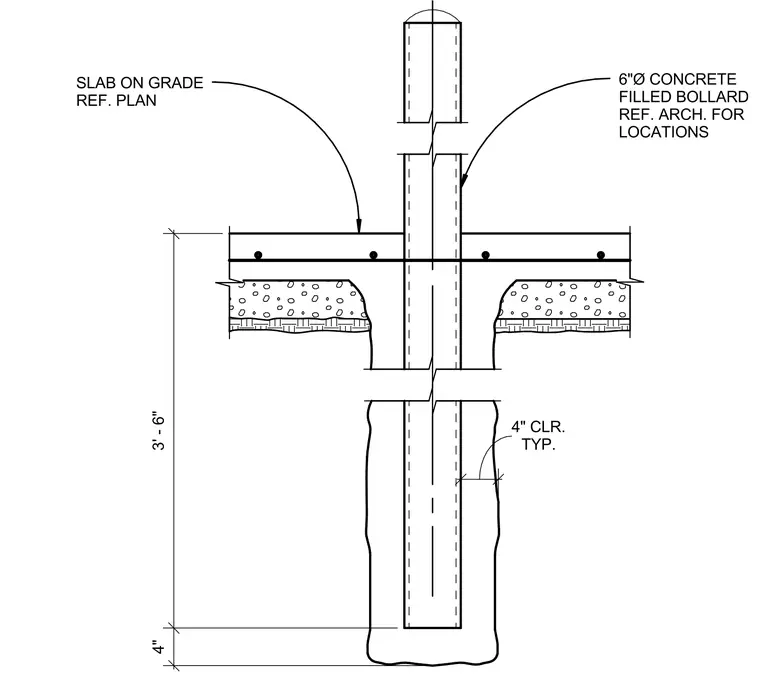

A six-inch diameter concrete-filled steel pipe bollard extends through a slab on grade into a concrete subgrade footing. The bollard is set into the structural slab and embeds three feet six inches below the slab surface, maintaining four inches of clear cover typical at the base. Locations are coordinated per architectural plans.
6"Ø CONCRETE FILLED BOLLARD REF. ARCH. FOR LOCATIONS SLAB ON GRADE REF. PLAN 3' - 6" 4" 4" CLR. TYP.
