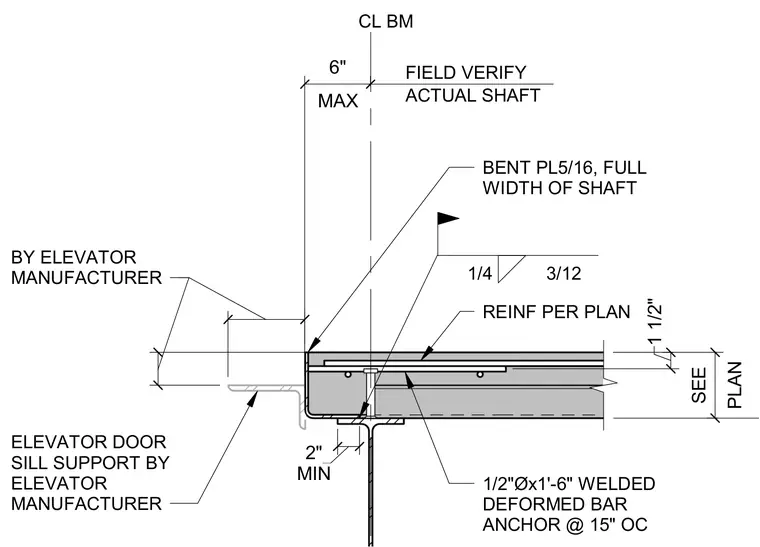

An elevator door sill support angle is provided by the elevator manufacturer adjacent to the shaft centerline, with the shaft dimensions field-verified. A 5/16-inch bent plate spans the full width of the shaft and is anchored with 1/2-inch diameter by 1'-6" welded deformed bar anchors spaced at 15 inches on center. The assembly incorporates reinforcement sized per plan and connects to a supporting steel beam with a 1/4-inch fillet weld.
FIELD VERIFY ACTUAL SHAFT BY ELEVATOR MANUFACTURER ELEVATOR DOOR SILL SUPPORT BY ELEVATOR MANUFACTURER 1/2"Øx1'-6" WELDED DEFORMED BAR ANCHOR @ 15" OC BENT PL5/16, FULL WIDTH OF SHAFT REINF PER PLAN 1/4 3/12 CL BM PLAN SEE 1 1/2" MAX 6" MIN 2"
