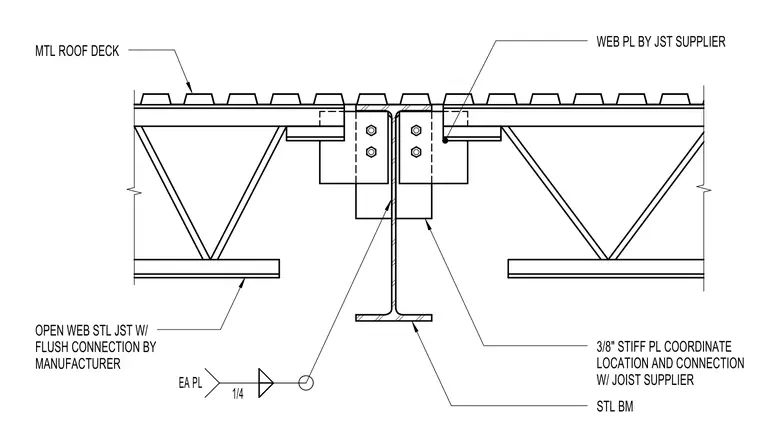

An open web steel joist connects flush to a supporting steel beam beneath a metal roof deck. A web plate provided by the joist supplier bolts to the supporting steel beam web, while a three-eighths-inch thick stiffener plate is positioned underneath and coordinated in location and connection with the joist supplier. Fillet welds of one-quarter-inch size are applied to each plate as indicated by standard weld symbols. The metal roof deck spans continuously across the top chords of the framing members.
MTL ROOF DECK OPEN WEB STL JST W/ FLUSH CONNECTION BY MANUFACTURER STL BM WEB PL BY JST SUPPLIER 3/8" STIFF PL COORDINATE LOCATION AND CONNECTION W/ JOIST SUPPLIER 1/4 EA PL
