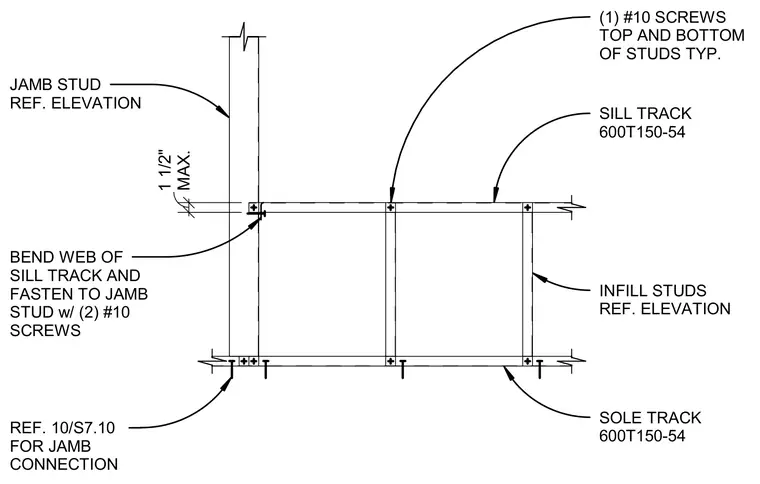

Cold-formed steel infill framing connects at a jamb stud. The sill track (600T150-54) intersects the jamb stud with a maximum clearance of one and one-half inches, and the web of the sill track is bent and fastened to the jamb stud using two number ten screws. Infill studs (600T150-54) and sole tracks connect with one number ten screw at the top and bottom of studs typically. Additional anchorage requires reference to sheet 10/S7.10 for the complete jamb connection.
MAX. 1 1/2" JAMB STUD REF. ELEVATION BEND WEB OF SILL TRACK AND FASTEN TO JAMB STUD w/ (2) #10 SCREWS (1) #10 SCREWS TOP AND BOTTOM OF STUDS TYP. SILL TRACK 600T150-54 INFILL STUDS REF. ELEVATION SOLE TRACK 600T150-54 REF. 10/S7.10 FOR JAMB CONNECTION
