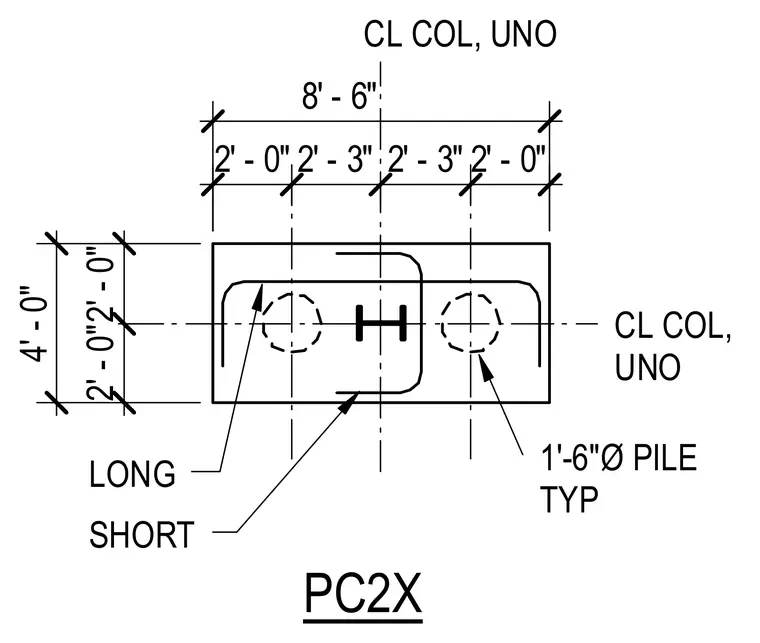

A reinforced concrete pile cap measuring eight feet six inches by four feet supports a centrally located column over two eighteen-inch diameter piles. Longitudinal and transverse reinforcing bars frame the pile cap with typical spacing dimensions relative to the column centerline. The layout maintains symmetrical overhangs and centering across the pile locations.
PC2X CL COL, UNO CL COL, UNO 8' - 6" 2' - 0" 2' - 3" 2' - 3" 2' - 0" 2' - 0"2' - 0" 4' - 0" 1'-6"Ø PILE TYP LONG SHORT
