Structural · S-P9E45

Framed Beam Connection with Stiffener Plate

Materials

Steel

Elements

Beams

Connections

Welded Connection

About this detail

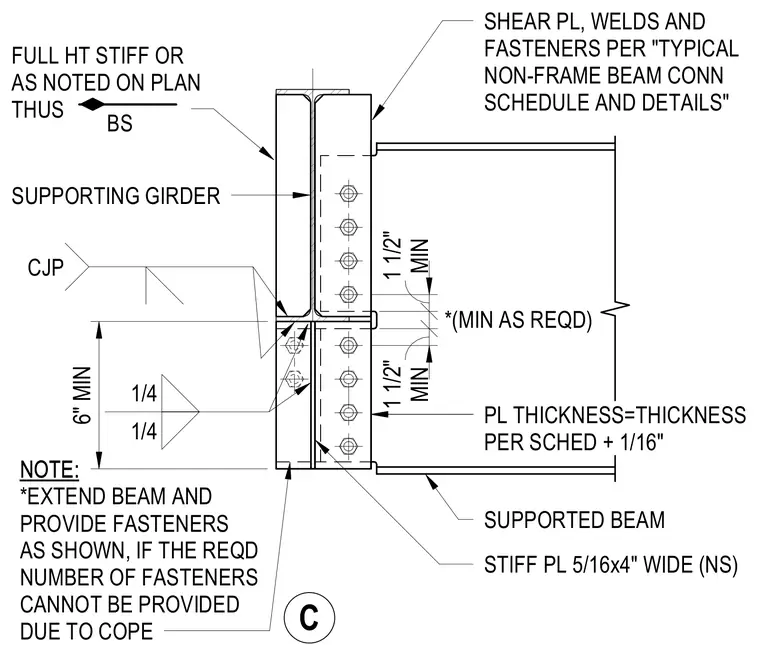

A supported steel beam connects to a supporting girder using a shear plate, welds, and fasteners governed by standard schedules. The shear plate thickness equals the scheduled thickness plus one-sixteenth of an inch. A five-sixteenth-inch by four-inch wide stiffener plate is provided on the near side of the supporting girder, running full height or as noted on plan. A complete-joint-penetration weld and quarter-inch fillet welds secure the web elements, with a six-inch minimum dimension noted. If the required number of fasteners cannot be accommodated due to a beam cope, the beam is extended to provide the necessary fasteners.
