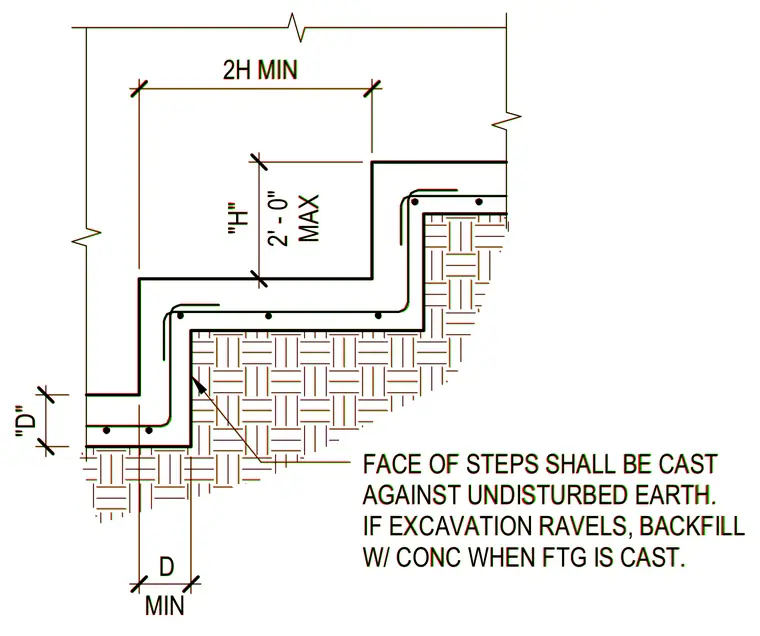

The concrete steps and footing face must be cast directly against undisturbed earth. If the excavation ravels, the space is backfilled with concrete when the footing is cast. Reinforcing steel is placed within the concrete section maintaining minimum thickness "D" and maximum rise "H" of two feet zero inches.
8" 18" 36" FACE OF STEPS SHALL BE CAST AGAINST UNDISTURBED EARTH. IF EXCAVATION RAVELS, BACKFILL W/ CONC WHEN FTG IS CAST. 8" 2H MIN "H" 2' - 0" MAX D MIN "D" 8" 18" 36" FACE OF STEPS SHALL BE CAST AGAINST UNDISTURBED EARTH. IF EXCAVATION RAVELS, BACKFILL W/ CONC WHEN FTG IS CAST. 8" 2H MIN "H" 2' - 0" MAX D MIN "D"
