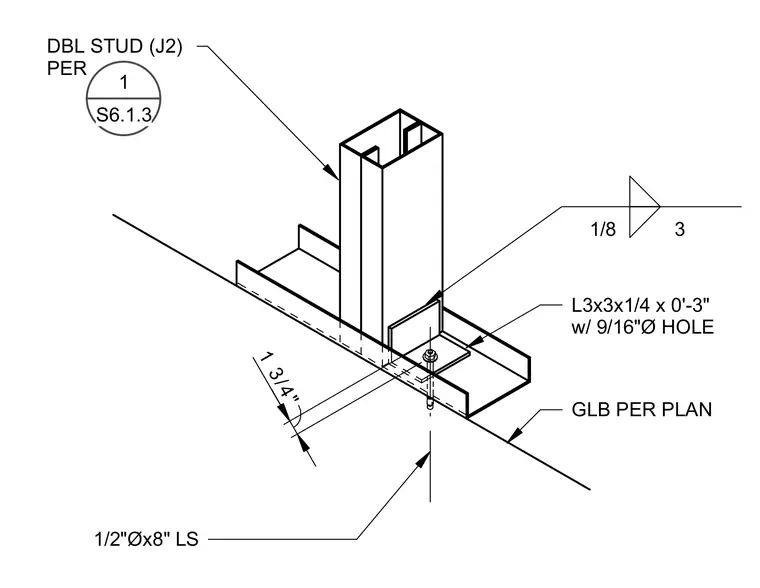

Double wood studs connect to a track using a three-inch long L3x3x1/4 angle with a nine-sixteenths-inch diameter hole. A one-half-inch diameter by eight-inch long anchor bolt secures the assembly through the track, set one and three-quarters inches from the edge. A glulam beam per plan supports the assembly. Welds of one-eighth-inch size are indicated at the angle connection.
DBL STUD (J2) PER L3x3x1/4 x 0'-3" w/ 9/16"Ø HOLE 1/2"Øx8" LS 1 3/4" 1/8 3 GLB PER PLAN 1 S6.1.3
