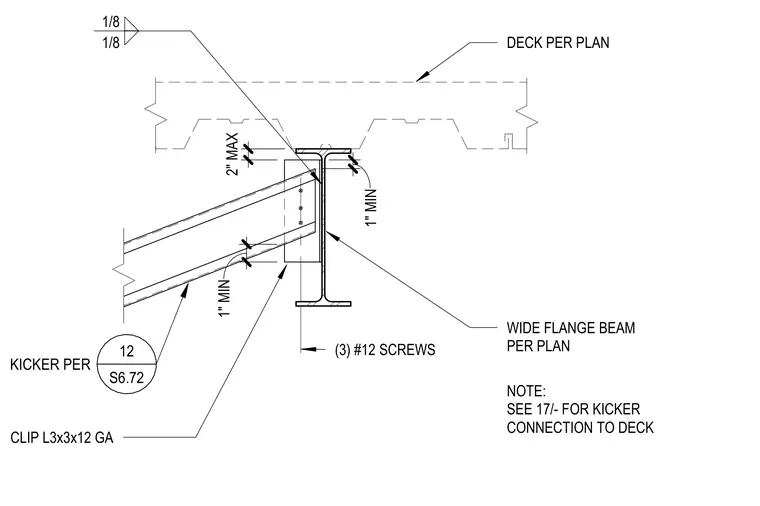

A structural steel kicker brace connects to the web of a wide-flange beam located below a metal deck. The brace framing member ties into an L3x3 angle clip with three number 12 screws secured through the clip leg. The angle clip is welded to the wide-flange beam web with fillet welds. A note directs the builder to sheet 17 for the kicker connection to the deck.
WIDE FLANGE BEAM PER PLAN CLIP L3x3x12 GA (3) #12 SCREWS DECK PER PLAN 2" MAX NOTE: SEE 17/- FOR KICKER CONNECTION TO DECK 1" MIN 1" MIN 1/8 1/8 12 S6.72 KICKER PER
