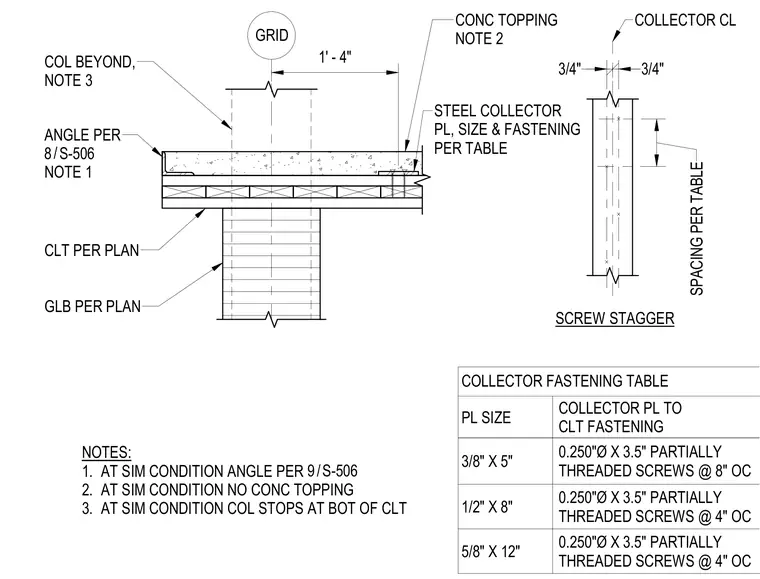

A steel collector plate is fastened to cross-laminated timber floor panels over a glulam beam and column support. The assembly incorporates a concrete topping slab and a steel angle at the perimeter condition. The collector plate is secured to the cross-laminated timber using 0.250-inch diameter by 3.5-inch partially threaded screws spaced at 4 or 8 inches on center, as dictated by the collector fastening table. A screw stagger pattern is specified along the collector centerline with three-quarter-inch dimensions on either side. General notes provide guidance for similar conditions regarding angles, lack of concrete topping, and column termination details.
COLLECTOR FASTENING TABLE COLLECTOR PL TO CLT FASTENING PL SIZE 3/8" X 5" 0.250"Ø X 3.5" PARTIALLY THREADED SCREWS @ 8" OC CLT PER PLAN STEEL COLLECTOR PL, SIZE & FASTENING PER TABLE ANGLE PER NOTE 1 / 8 S-506 GRID COL BEYOND, NOTE 3 CONC TOPPING NOTE 2 1/2" X 8" 0.250"Ø X 3.5" PARTIALLY THREADED SCREWS @ 4" OC 5/8" X 12" 0.250"Ø X 3.5" PARTIALLY THREADED SCREWS @ 4" OC 1' - 4" GLB PER PLAN NOTES: 1. AT SIM CONDITION ANGLE PER 2. AT SIM CONDITION NO CONC TOPPING 3. AT SIM CONDITION COL STOPS AT BOT OF CLT / 9 S-506 3/4" 3/4" SCREW STAGGER COLLECTOR CL SPACING PER TABLE
