Structural · S-P8X7D

Optional Continuous Gusset Plate at Steel Column and Beam

Materials

Steel

Elements

Columns Beams Bracing Connections / Plates

Connections

Gusset Plate Bracing Connection Welded Connection

About this detail

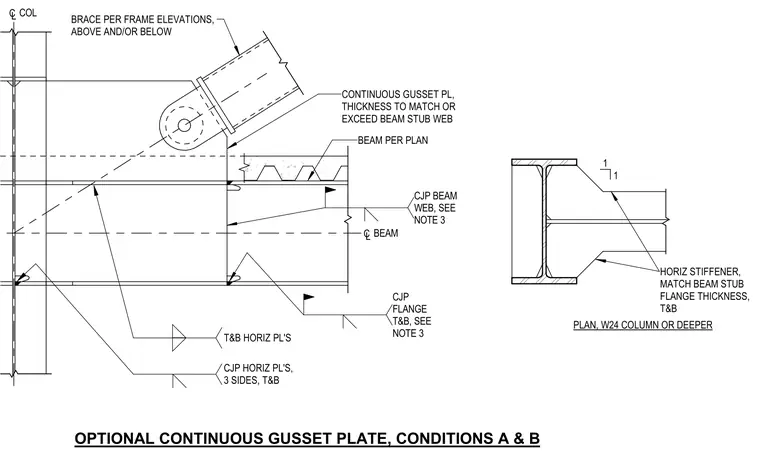

This structural steel connection features a continuous gusset plate welded to a wide-flange column and a beam stub sized per plan. The gusset plate thickness matches or exceeds the beam stub web, with the brace positioned above or below per frame elevations. Complete joint penetration welds connect the beam web and top and bottom flanges. Horizontal stiffener plates matching the beam stub flange thickness are detailed on three sides for W24 columns or deeper.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
