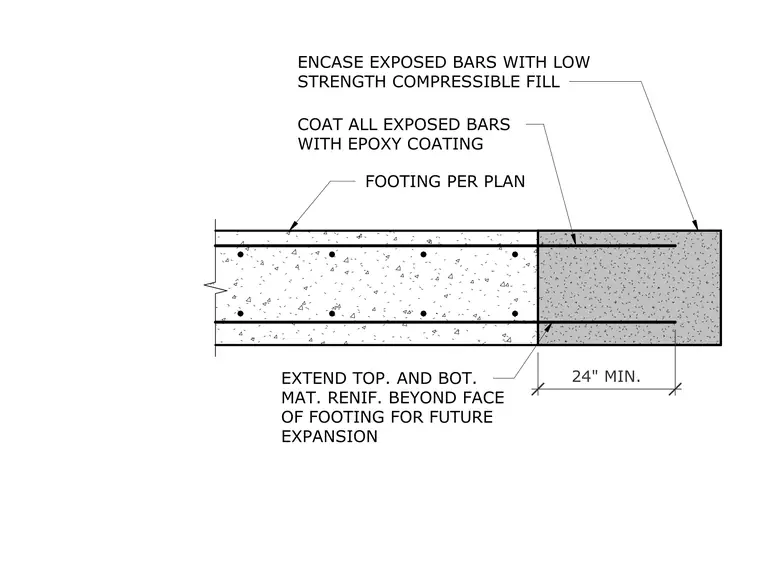

The concrete footing terminates with top and bottom reinforcing mats extending a minimum of 24 inches beyond the footing face. All exposed reinforcing bars feature an epoxy coating for corrosion protection. Exposed dowels are encased in low-strength compressible fill to facilitate future connection and movement. The footing is sized and reinforced per the structural plan.
Text on the drawing
FOOTING PER PLAN COAT ALL EXPOSED BARS WITH EPOXY COATING ENCASE EXPOSED BARS WITH LOW STRENGTH COMPRESSIBLE FILL 24" MIN. EXTEND TOP. AND BOT. MAT. RENIF. BEYOND FACE OF FOOTING FOR FUTURE EXPANSION
