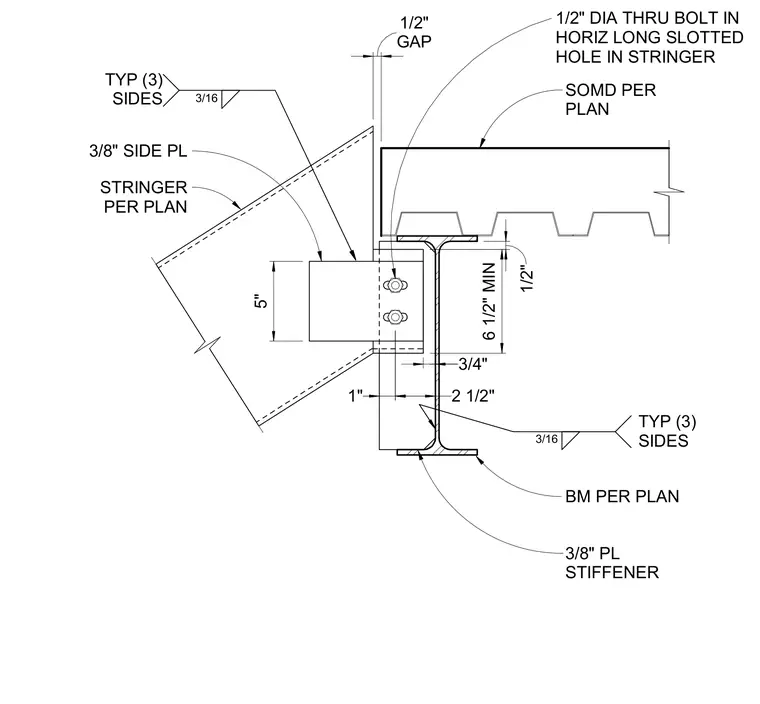

A stair stringer connects to a structural beam via a three-eighths-inch side plate welded with three-sixteenths-inch fillet welds on three sides. A half-inch diameter through bolt is installed in a horizontal long slotted hole within the stringer to accommodate differential movement, maintaining a half-inch gap at the connection. Three-eighths-inch plate stiffeners are welded to the supporting beam flange with three-sixteenths-inch fillet welds on three sides. Slab-on-metal deck per plan bears above the supporting beam.
1/2" 6 1/2" MIN GAP 1/2" 5" 3/4" 3/8" PL STIFFENER SOMD PER PLAN 1/2" DIA THRU BOLT IN HORIZ LONG SLOTTED HOLE IN STRINGER BM PER PLAN 3/16 STRINGER PER PLAN 3/8" SIDE PL 3/16 TYP (3) SIDES TYP (3) SIDES 2 1/2" 1"
