Structural · S-P8GKV

Welded Shear Plate Beam-to-Column Connection

Materials

Steel

Elements

Columns Beams Connections / Plates

Connections

Beam-to-Column Welded Connection

About this detail

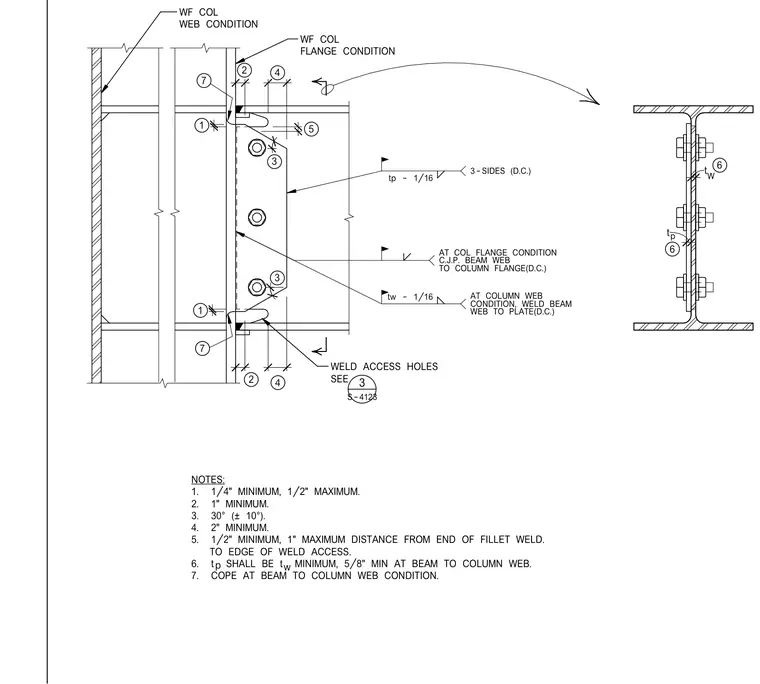

This structural steel connection details a wide-flange beam framing into a wide-flange column utilizing a welded shear plate. The beam web connects to the plate with three bolts and a fillet weld, while the beam flanges connect to the column via complete joint penetration welds with weld access holes. The plate thickness is specified as the beam web thickness minimum with a five-eighths inch minimum at the column web. Specific clearances and tolerances govern the weld access hole geometry, fillet weld sizes ranging from one-quarter to one-half inch, and edge distances.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
