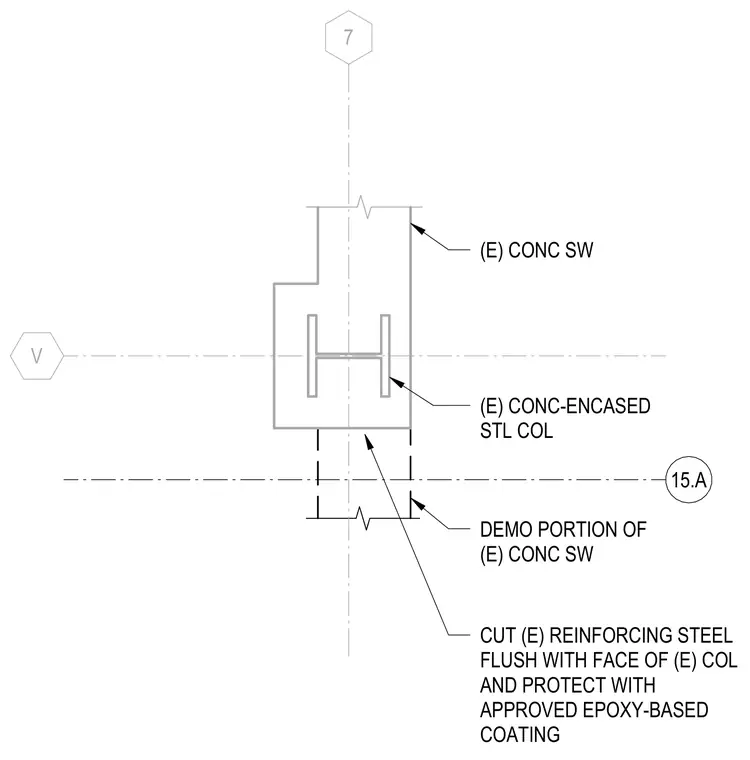

Demolish the designated portion of the existing concrete shear wall while preserving the concrete-encased steel column at the grid intersection. Cut the existing reinforcing steel flush with the face of the column. Protect the cut reinforcing ends with an approved epoxy-based coating.
V 7 15.A DEMO PORTION OF (E) CONC SW (E) CONC-ENCASED STL COL (E) CONC SW CUT (E) REINFORCING STEEL FLUSH WITH FACE OF (E) COL AND PROTECT WITH APPROVED EPOXY-BASED COATING
