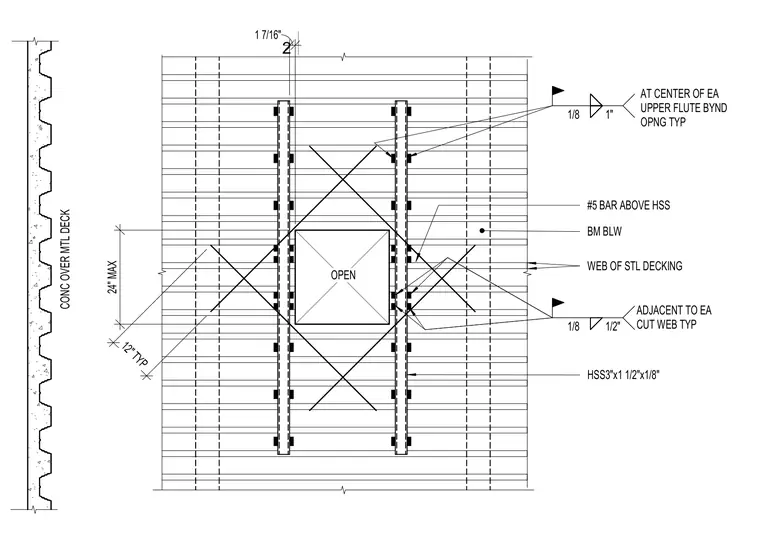

Concrete over metal deck features a square framed opening reinforced with hollow structural section members running parallel to the deck flutes. A number 5 reinforcing bar spans above the hollow structural section beam below the web of the steel decking. Spacing is maintained at twenty-four inches maximum with twelve inches typical dimensions around the opening. Welds secure the structural framing into the deck flutes at typical locations.
HSS3"x1 1/2"x1/8" #5 BAR ABOVE HSS BM BLW WEB OF STL DECKING 24" MAX 12" TYP OPEN CONC OVER MTL DECK 1 7/16" 1/8 1" AT CENTER OF EA UPPER FLUTE BYND OPNG TYP 1/8 1/2" ADJACENT TO EA CUT WEB TYP 2
