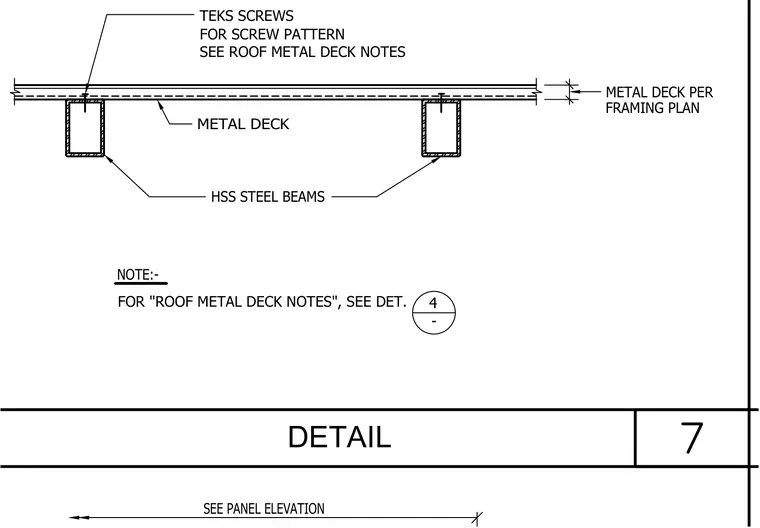

Metal deck bears over hollow structural section steel beams and is fastened to the supporting steel members using Tek screws. The screw pattern follows the requirements specified in the roof metal deck notes. The metal deck profile and sizing are determined per the structural framing plan.
HSS STEEL BEAMS METAL DECK TEKS SCREWS SEE ROOF METAL DECK NOTES FOR SCREW PATTERN FOR "ROOF METAL DECK NOTES", SEE DET. 4 - NOTE:- DETAIL FRAMING PLAN METAL DECK PER SEE PANEL ELEVATION
