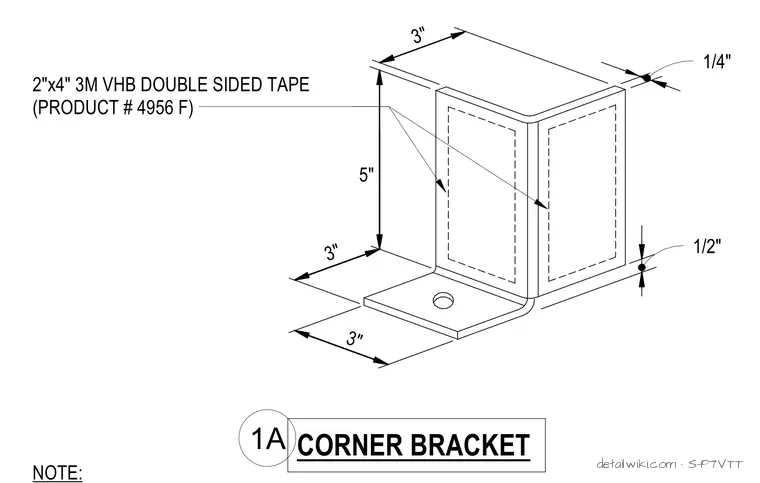

The drawing illustrates a metal or rigid corner bracket featuring dimensions for its height, flanges, and thickness gaps, along with a pre-drilled or punched hole on the base flange. Applied to the inside faces of the bracket is a 2-inch by 4-inch strip of 3M VHB double-sided tape (Product # 4956 F) for adhesive mounting. The detail provides overall length, width, and height dimensions including 3-inch legs, a 5-inch height, and specific spacing offsets.
Text on the drawing
1/4" 1/2" 3" 3" 5" 3" 2"x4" 3M VHB DOUBLE SIDED TAPE (PRODUCT # 4956 F) CORNER BRACKET 1A
