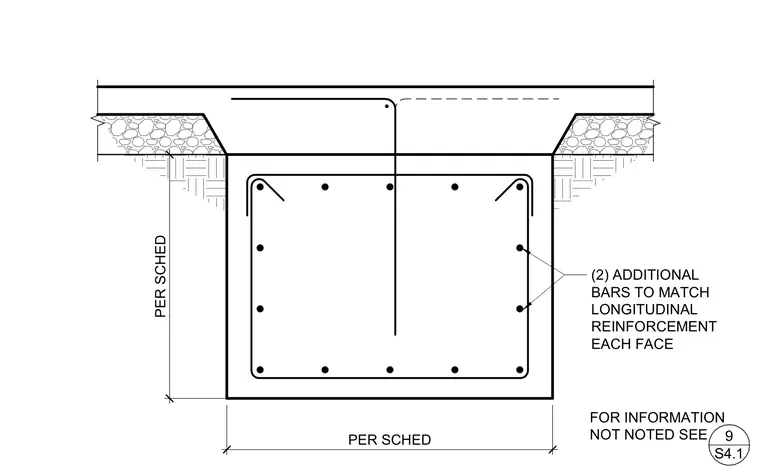

A reinforced concrete grade beam sits within compacted subgrade and crushed stone fill, featuring a continuous profile with sized width and depth per schedule. Two additional longitudinal reinforcement bars match the sizing on each face as specified. Transverse stirrups and bent corner bars provide internal shear and confinement reinforcing. Unnoted criteria and supplementary details reference sheet S4.1.
(2) ADDITIONAL BARS TO MATCH LONGITUDINAL REINFORCEMENT EACH FACE PER SCHED PER SCHED FOR INFORMATION NOT NOTED SEE 9 S4.1
