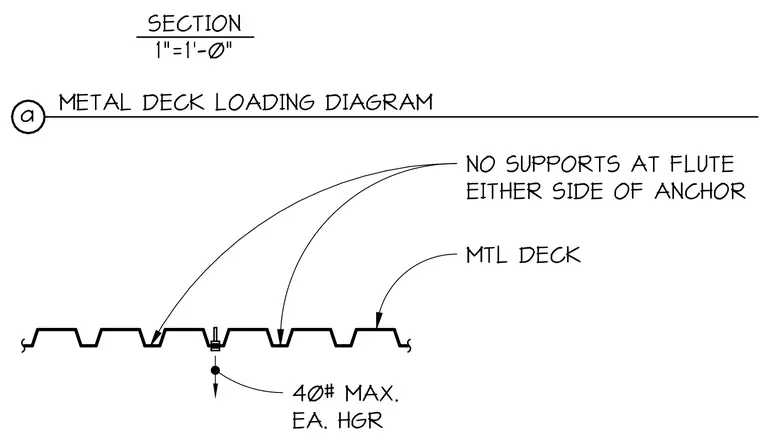

A metal deck section indicates a maximum load of forty pounds per each hanger attached to the assembly. The drawing specifies having no supports at the flute on either side of the anchor location.
SECTION 1"=1'-0" METAL DECK LOADING DIAGRAM a NO SUPPORTS AT FLUTE EITHER SIDE OF ANCHOR MTL DECK 40# MAX. EA. HGR
