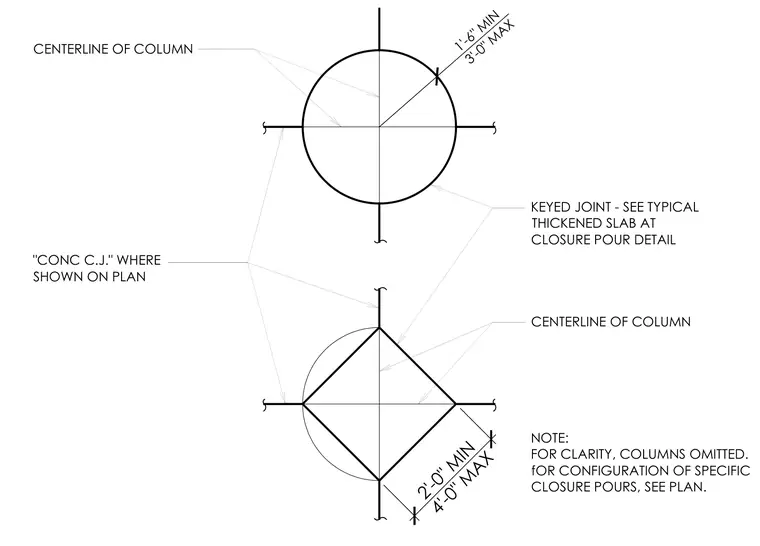

Concrete closure pours and construction joints surround circular and square columns. Keyed construction joints require dimensional tolerances ranging from one foot six inches minimum to three feet maximum, or two feet minimum to four feet maximum depending on the specific pour configuration. Columns center on orthogonal axes with construction joints located where shown on plan. Columns are omitted from the main drawing views for clarity, and specific closure pour configurations are referenced to the structural framing plan.
CENTERLINE OF COLUMN "CONC C.J." WHERE SHOWN ON PLAN 2'-0" MIN 4'-0" MAX KEYED JOINT - SEE TYPICAL THICKENED SLAB AT CLOSURE POUR DETAIL 1'-6" MIN 3'-0" MAX NOTE: FOR CLARITY, COLUMNS OMITTED. fOR CONFIGURATION OF SPECIFIC CLOSURE POURS, SEE PLAN. CENTERLINE OF COLUMN l C t c J ) J
