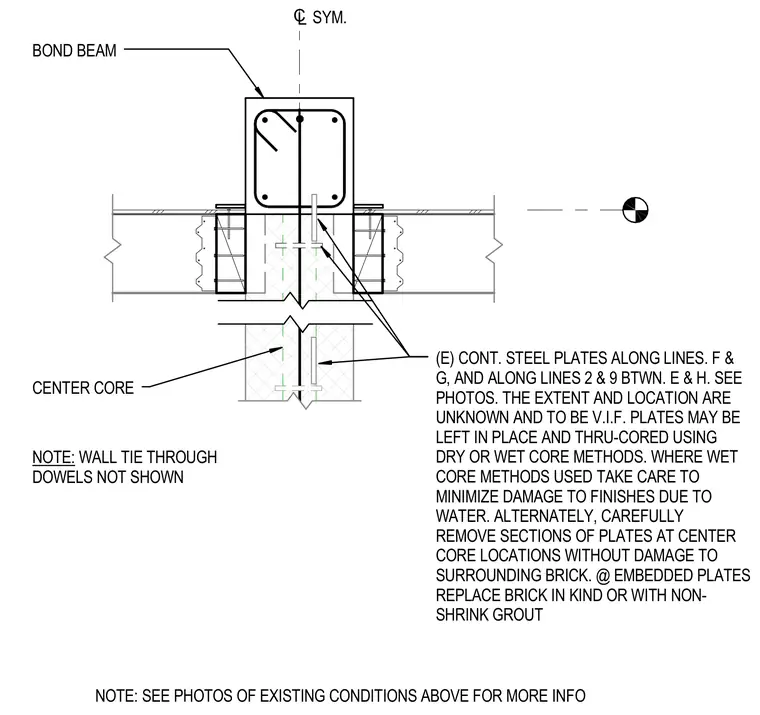

Core penetration procedures through continuous existing steel plates located along structural lines and between masonry walls and concrete bond beams. Existing steel plates may be left in place and core-drilled using dry or wet core methods, with precautions taken to minimize water damage to surrounding finishes. Alternatively, sections of plates at center core locations may be carefully removed without damaging surrounding brick. Where embedded plates are disturbed, brick is replaced in kind or patched with non-shrink grout. Wall tie-through dowels are omitted from this view for clarity.
CL SYM. BOND BEAM NOTE: WALL TIE THROUGH DOWELS NOT SHOWN CENTER CORE (E) CONT. STEEL PLATES ALONG LINES. F & G, AND ALONG LINES 2 & 9 BTWN. E & H. SEE PHOTOS. THE EXTENT AND LOCATION ARE UNKNOWN AND TO BE V.I.F. PLATES MAY BE LEFT IN PLACE AND THRU-CORED USING DRY OR WET CORE METHODS. WHERE WET CORE METHODS USED TAKE CARE TO MINIMIZE DAMAGE TO FINISHES DUE TO WATER. ALTERNATELY, CAREFULLY REMOVE SECTIONS OF PLATES AT CENTER CORE LOCATIONS WITHOUT DAMAGE TO SURROUNDING BRICK. @ EMBEDDED PLATES REPLACE BRICK IN KIND OR WITH NON- SHRINK GROUT NOTE: SEE PHOTOS OF EXISTING CONDITIONS ABOVE FOR MORE INFO
