Structural · S-P7AXR

Tie-Back Anchor Connection at Steel Beam

Materials

Concrete

Elements

Beams Decks Anchors / Embeds Reinforcing

Connections

Welded Connection Bolted Connection

About this detail

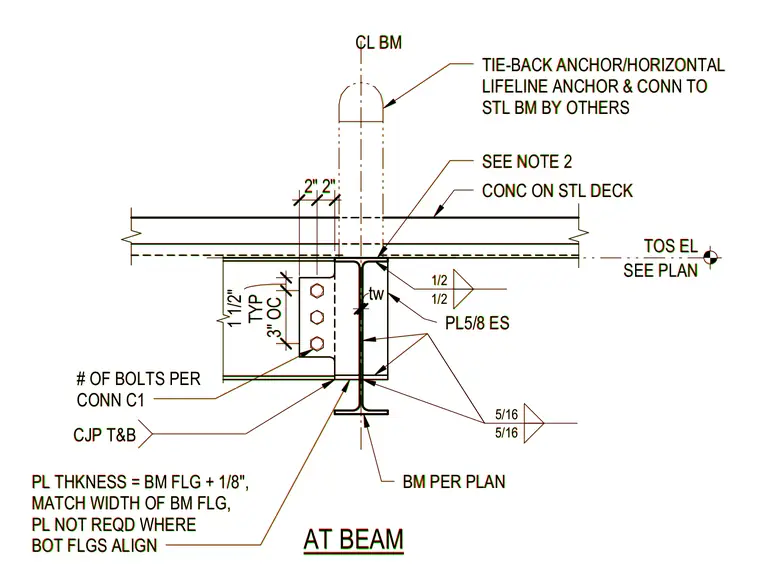

A tie-back anchor and horizontal lifeline anchor connects to a structural steel beam below a concrete on metal deck assembly. The anchor aligns with the beam center line, with connection details to the steel beam provided by others. A five-eighths-inch plate each side connects with bolts spaced at three inches on center, positioned one and a half inches from the top. Complete joint penetration welds top and bottom secure the assembly, alongside five-sixteenths-inch fillet welds. Plate thickness equals the beam flange plus one-eighth inch, matching the beam flange width, but plates are omitted where bottom flanges align.
