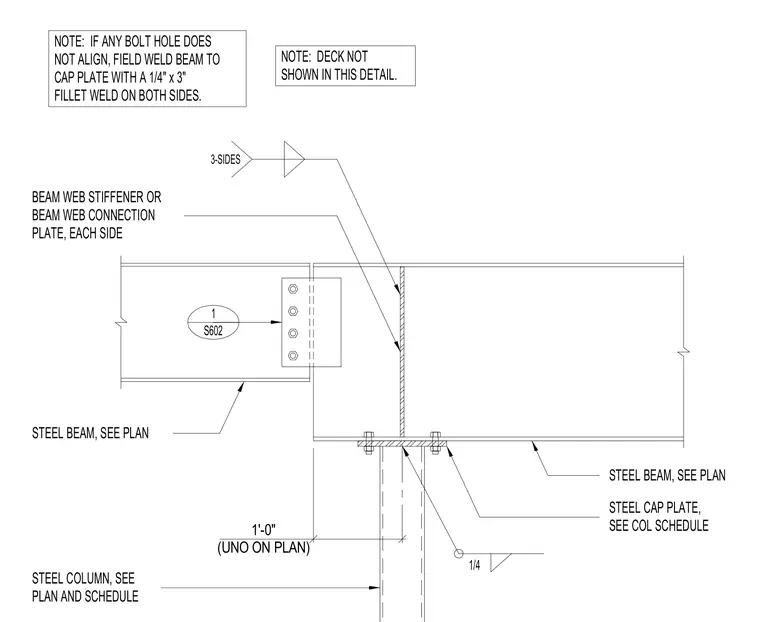

A steel beam frames into a steel column supported by a steel cap plate sized per the column schedule. The beam web connects using a web connection plate on each side fastened with four bolts. Beam web stiffeners are welded on three sides to the supporting beam. Field welding with a one-quarter-inch by three-inch fillet weld on both sides is specified if any bolt holes fail to align.
1 S602 1'-0" (UNO ON PLAN) 1/4 STEEL BEAM, SEE PLAN STEEL COLUMN, SEE PLAN AND SCHEDULE STEEL CAP PLATE, SEE COL SCHEDULE STEEL BEAM, SEE PLAN NOTE: IF ANY BOLT HOLE DOES NOT ALIGN, FIELD WELD BEAM TO CAP PLATE WITH A 1/4" x 3" FILLET WELD ON BOTH SIDES. 3-SIDES BEAM WEB STIFFENER OR BEAM WEB CONNECTION PLATE, EACH SIDE NOTE: DECK NOT SHOWN IN THIS DETAIL.
