Structural Steel Beam Web Access Hole Geometry

Materials

Connections

About this detail

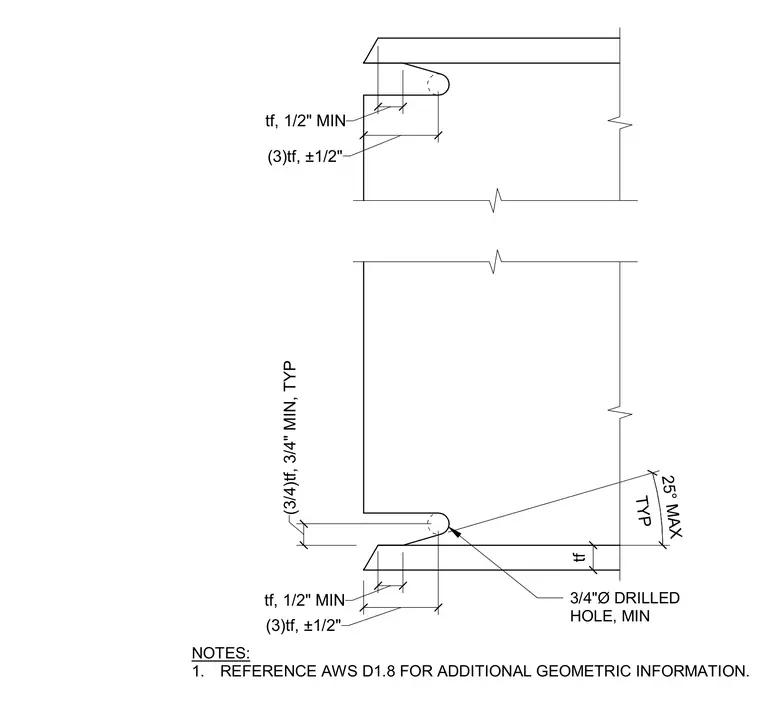

Required geometric layout and minimum dimensions for weld access holes in structural steel beam webs. Dimensions are specified in relation to flange thickness, including a three-flange-thickness dimension and a half-inch minimum distance. A three-quarter-inch diameter drilled hole is located at the internal corner of the cutout with a twenty-five-degree maximum angle transition. Reference AWS D1.8 for additional geometric information.
