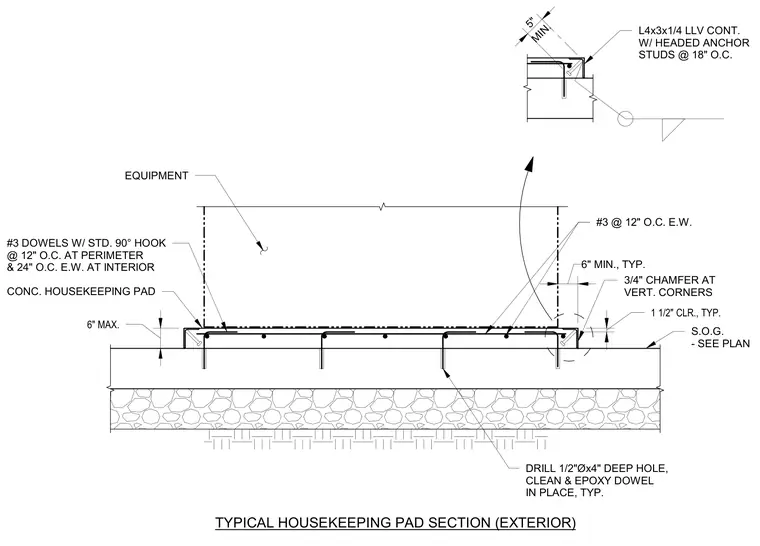

An exterior concrete housekeeping pad sits atop a slab-on-grade with a minimum thickness of six inches. The pad features number three dowels with standard ninety-degree hooks at twelve inches on center at the perimeter and twenty-four inches on center each way at the interior. Internal reinforcement consists of number three bars at twelve inches on center each way with one and a half inches of typical clearance. Vertical corners include a three-quarter-inch chamfer. Half-inch diameter by four-inch deep holes are drilled, cleaned, and epoxied to anchor the dowels in place. A continuous L4x3x1/4 long-leg-vertical angle with headed anchor studs at eighteen inches on center is detailed at the edge.
#3 DOWELS W/ STD. 90° HOOK @ 12" O.C. AT PERIMETER & 24" O.C. E.W. AT INTERIOR EQUIPMENT CONC. HOUSEKEEPING PAD 6" MIN., TYP. #3 @ 12" O.C. E.W. 3/4" CHAMFER AT VERT. CORNERS DRILL 1/2"Øx4" DEEP HOLE, CLEAN & EPOXY DOWEL IN PLACE, TYP. 1 1/2" CLR., TYP. 6" MAX. TYPICAL HOUSEKEEPING PAD SECTION (EXTERIOR) S.O.G. - SEE PLAN L4x3x1/4 LLV CONT. W/ HEADED ANCHOR STUDS @ 18" O.C. MIN. 5"
