A continuous steel beam as sized per plan frames into a wide flange column. Minimum 5/8 inch thick top and bottom plates connect with A325 through bolts, requiring a minimum of four bolts. Three-eighths inch thick full height stiffener plates are welded to each side of the column web with a spacing matching the column depth.

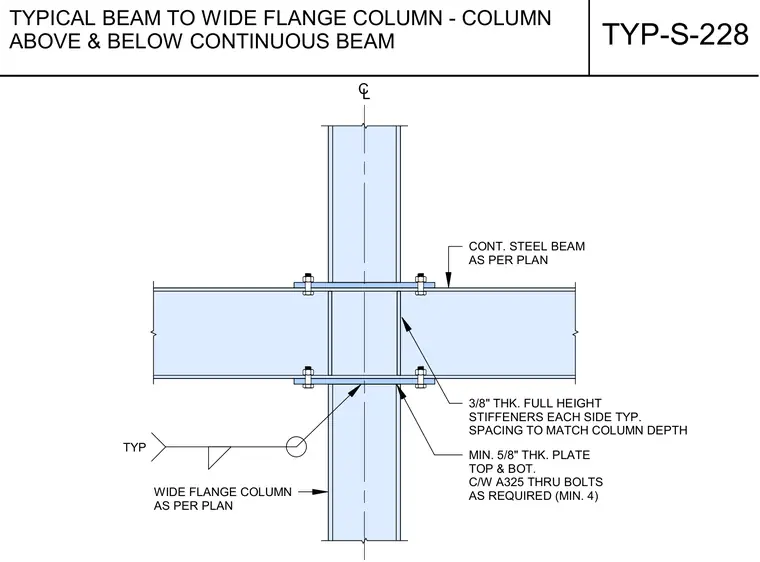

CONT. STEEL BEAM AS PER PLAN 3/8" THK. FULL HEIGHT STIFFENERS EACH SIDE TYP. SPACING TO MATCH COLUMN DEPTH MIN. 5/8" THK. PLATE TOP & BOT. C/W A325 THRU BOLTS AS REQUIRED (MIN. 4) WIDE FLANGE COLUMN AS PER PLAN TYP L C TYP-S-228 TYPICAL BEAM TO WIDE FLANGE COLUMN - COLUMN ABOVE & BELOW CONTINUOUS BEAM
