Structural · S-P6VJA

Deck Joint Over Support

Materials

Steel Timber / Wood

Elements

Decks

Connections

Welded Connection Shear Stud / Composite Deck Attachment

About this detail

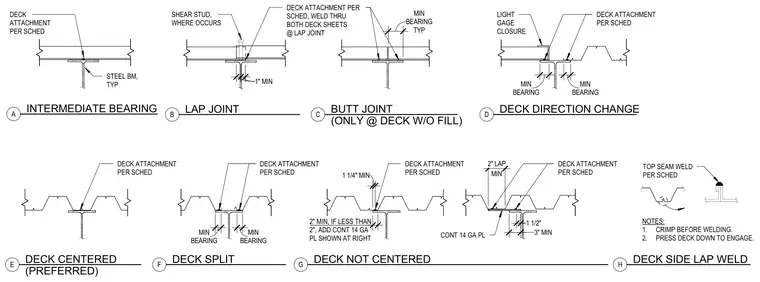

These structural steel details illustrate various metal deck joint and bearing configurations over supporting steel beams. The assembly types include intermediate bearing, lap joints welded through both deck sheets, butt joints without fill, and deck direction changes utilizing light gauge closures. Additional conditions cover deck splits, off-center bearings requiring continuous fourteen gauge plates, and side lap welds requiring crimping and downward pressure before welding. Deck attachments are provided per schedule with specified minimum bearing lengths and one-inch minimum dimensions at beam flanges.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
