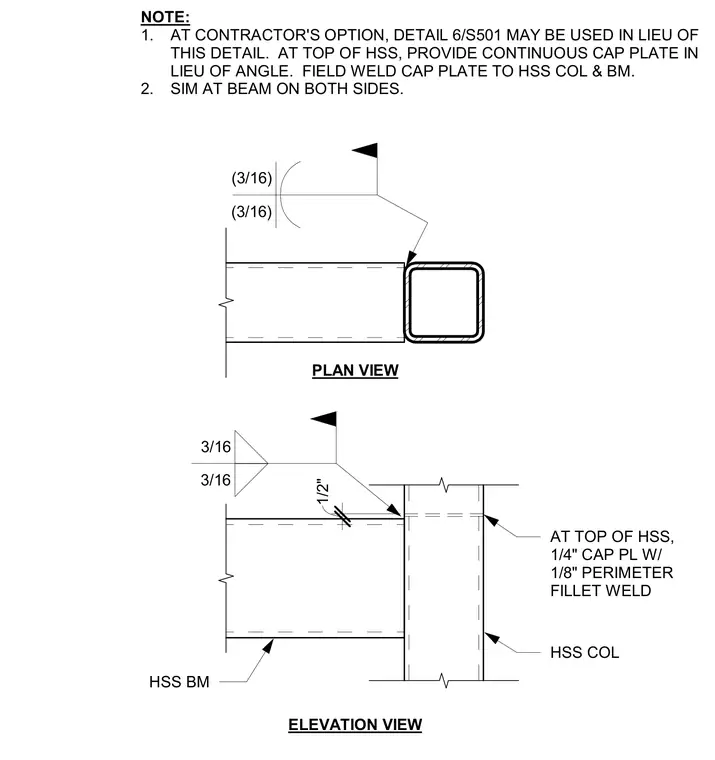

A hollow structural section beam frames into a hollow structural section column with a continuous one-quarter-inch cap plate at the top of the column. The connection features three-sixteenth-inch fillet welds on the beam web and a one-eighth-inch perimeter fillet weld securing the cap plate to the hollow structural section column and beam. A one-half-inch gap is provided at the top connection interface. The configuration is similar at the beam on both sides of the column.
PLAN VIEW ELEVATION VIEW (3/16) (3/16) 3/16 3/16 NOTE: 1. AT CONTRACTOR'S OPTION, DETAIL 6/S501 MAY BE USED IN LIEU OF THIS DETAIL. AT TOP OF HSS, PROVIDE CONTINUOUS CAP PLATE IN LIEU OF ANGLE. FIELD WELD CAP PLATE TO HSS COL & BM. 2. SIM AT BEAM ON BOTH SIDES. AT TOP OF HSS, 1/4" CAP PL W/ 1/8" PERIMETER FILLET WELD 1/2" HSS BM HSS COL
