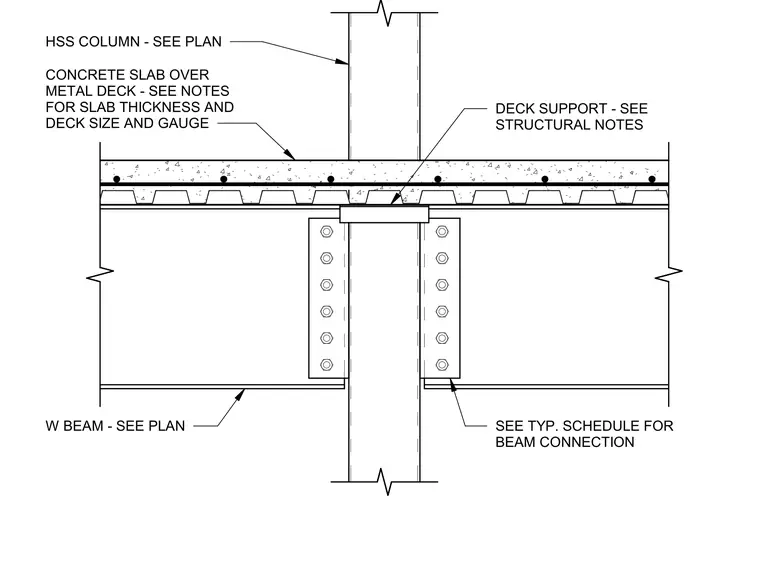

A wide-flange beam frames into a hollow structural section column using a bolted connection. The beam is supported by a seat plate at the top flange, with the connection details for the beam-to-column interface specified in the typical schedule. A concrete slab over metal deck sits atop the assembly, with the deck support and slab specifications referenced in the structural notes. The hollow structural section column size is determined per the structural plan.
