Structural · S-P6GTP

Stud to Track Connection

Materials

Timber / Wood Metal (misc.)Gypsum / Drywall

Elements

Beams Walls Arches Connections / Plates

Connections

Rebar Splice / Development Expansion / Slip Connection

About this detail

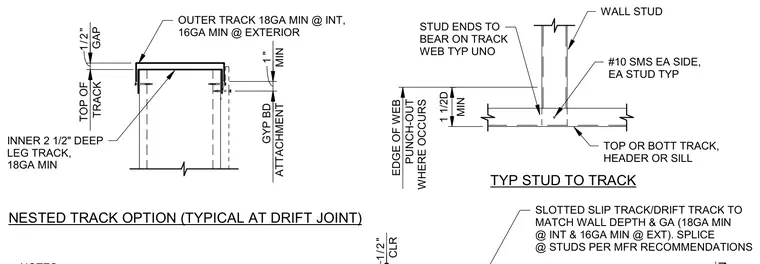

Cold-formed steel wall studs bear directly on the track web with stud ends resting on the track unless noted otherwise. A number 10 sheet metal screw fastens each side of each typical stud to the top or bottom track, header, or sill. A nested track option provides a slotted slip track or drift track matching the wall depth and gauge, sized eighteen gauge minimum at interior and sixteen gauge minimum at exterior conditions. A half inch gap is maintained at the top of the track, with an inner two and a half inch deep leg track of eighteen gauge minimum. Gypsum board attachment extends to a minimum of one inch from the track edge.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
