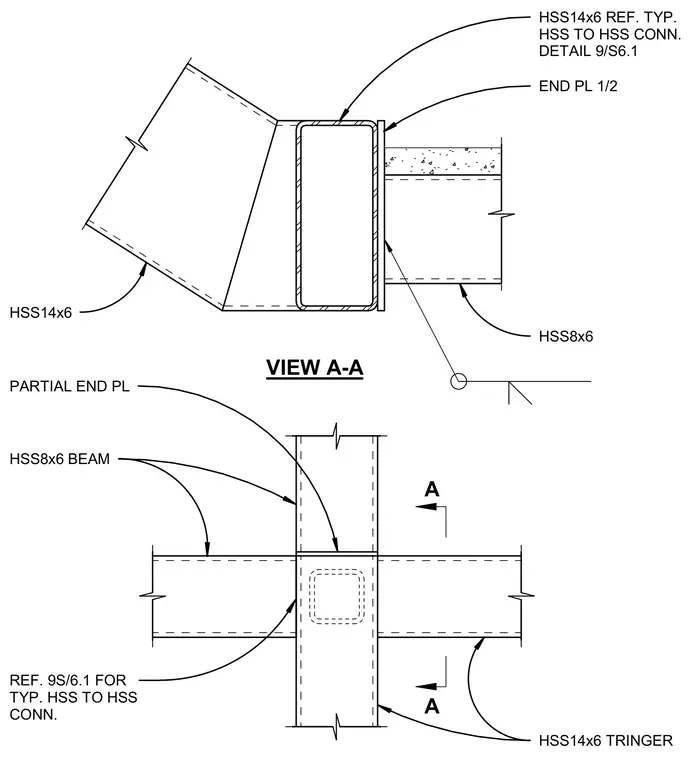

An HSS8x6 beam connects to an HSS14x6 structural steel stringer using a one-half-inch end plate welded to the end of the beam. A partial end plate detail is provided at the connection interface, referencing typical HSS-to-HSS connection details on sheet S6.1. The assembly accommodates intersecting hollow structural sections with aligned member profiles as shown in View A-A.
HSS14x6 REF. TYP. HSS TO HSS CONN. DETAIL 9/S6.1 HSS14x6 HSS8x6 END PL 1/2 A VIEW A-A A HSS8x6 BEAM REF. 9S/6.1 FOR TYP. HSS TO HSS CONN. PARTIAL END PL HSS14x6 TRINGER
