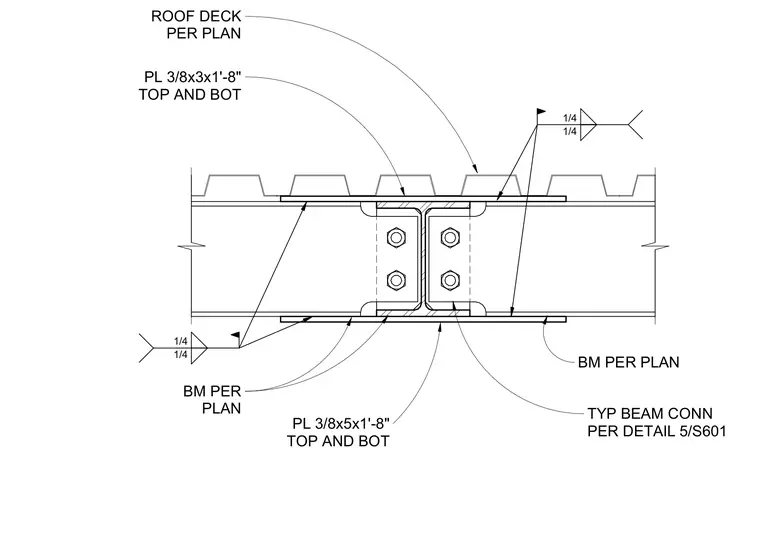

Two steel beams meet end-to-end at a moment connection reinforced by top and bottom splice plates. The 3/8-inch by 3-inch top plate and 3/8-inch by 5-inch bottom plate span across the joint, welded to the beam flanges with 1/4-inch fillet welds. Framing angles bolted to the beam webs provide standard shear transfer per the referenced typical detail. Roof deck bears directly over the top flange and plate assembly.
BM PER PLAN PL 3/8x3x1'-8" TOP AND BOT ROOF DECK PER PLAN BM PER PLAN 1/4 1/4 1/4 1/4 PL 3/8x5x1'-8" TOP AND BOT TYP BEAM CONN PER DETAIL 5/S601
