Structural · S-P6AV6

Marquee Sign Base Plate and Concrete Pier Foundation

Materials

Concrete Reinforced Concrete Steel Masonry / CMU

Elements

Columns Walls Canopies Floors / Slabs Foundations / Footings Arches Anchors / Embeds Connections / Plates Reinforcing

Connections

Base Plate / Anchorage Rebar Splice / Development

About this detail

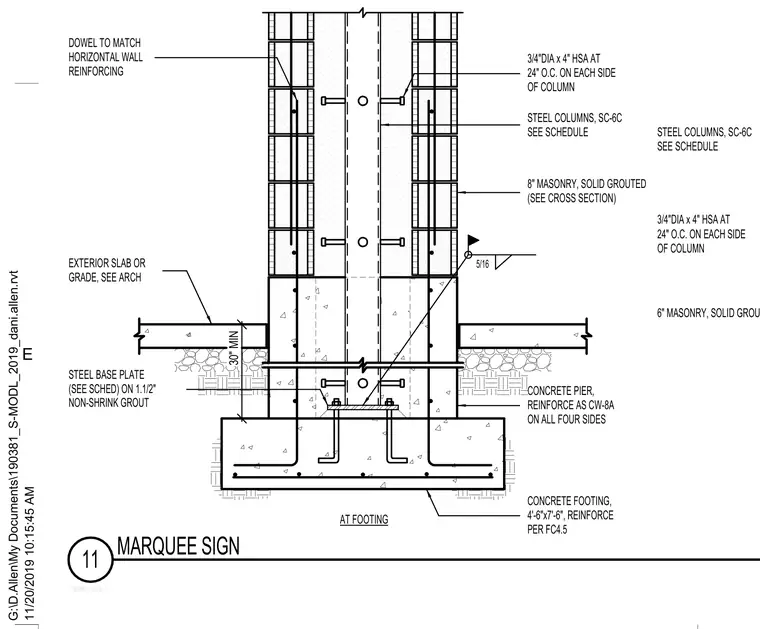

A marquee sign column base and foundation assembly is anchored to a reinforced concrete footing. Steel columns are mounted on SC-6C steel base plates over one and one-half inches of non-shrink grout, anchored into a concrete pier measuring thirty inches minimum depth. The pier is reinforced as specified by CW-8A on all four sides and tied into adjacent masonry walls using horizontal wall reinforcing dowels. Solid-grouted eight-inch and six-inch masonry surrounds the structural columns, tied with three-quarter-inch diameter by four-inch heavy duty sleeve anchors at twenty-four inches on center on each side of the column. The concrete footing measures four feet six inches by seven feet six inches and is reinforced per FC4.5 below the exterior slab or grade.
