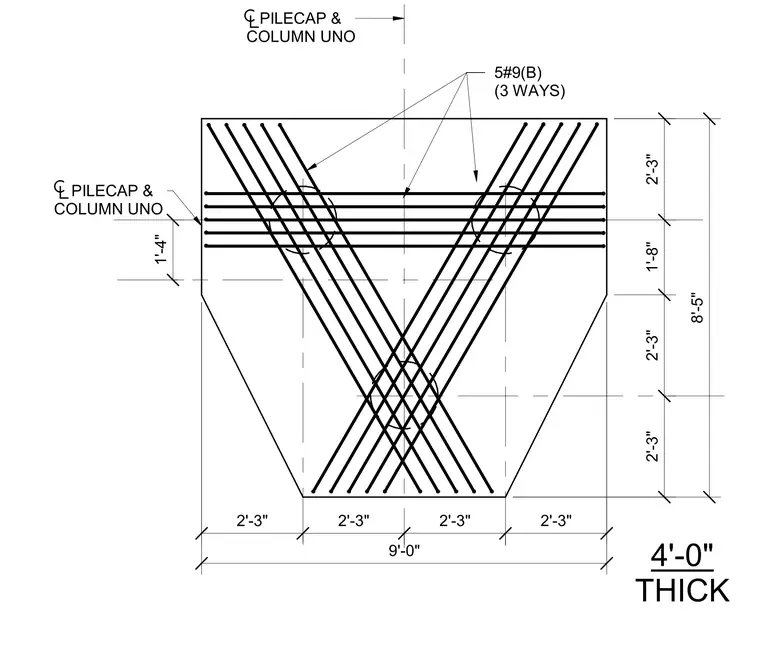

A four-foot-thick concrete pile cap features reinforcing bar layouts detailed in three ways with number nine bars. Dimensions define the overall geometry, centerline locations for the pile cap and column unless otherwise noted, and spacing intervals across the eight-foot-five-inch and nine-foot dimensions.
4'-0" THICK PILECAP & COLUMN UNO 5#9(B) (3 WAYS) PILECAP & COLUMN UNO 2'-3" 2'-3" 2'-3" 2'-3" 9'-0" 2'-3" 2'-3" 1'-8" 2'-3" 1'-4" 8'-5"
