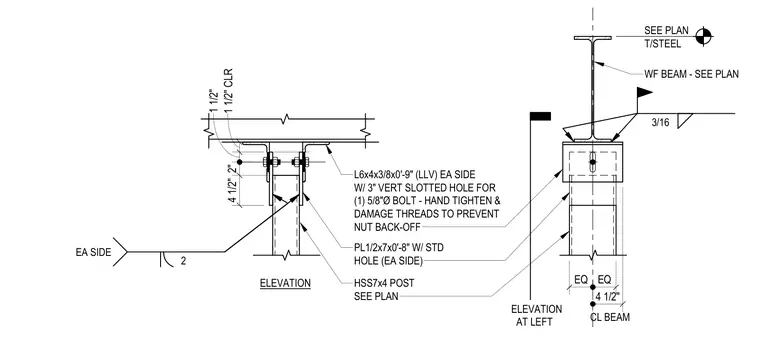

An HSS7x4 hollow structural section post connects to a wide-flange beam above using two L6x4x3/8 angles by nine inches long on each side. Each angle features a three-inch vertical slotted hole accommodating one 5/8-inch diameter bolt that is hand-tightened with damaged threads to prevent nut back-off while allowing vertical movement. A 1/2-inch by 7-inch by 8-inch plate with standard holes is welded to each side. A three-sixteenths inch fillet weld secures the beam assembly as specified on plan.
3/16 SEE PLAN T/STEEL L6x4x3/8x0'-9" (LLV) EA SIDE W/ 3" VERT SLOTTED HOLE FOR (1) 5/8"Ø BOLT - HAND TIGHTEN & DAMAGE THREADS TO PREVENT NUT BACK-OFF PL1/2x7x0'-8" W/ STD HOLE (EA SIDE) HSS7x4 POST SEE PLAN 1 1/2" CLR 1 1/2" 2" 4 1/2" 2 EA SIDE ELEVATION AT LEFT ELEVATION CL BEAM WF BEAM - SEE PLAN 4 1/2" EQ EQ
