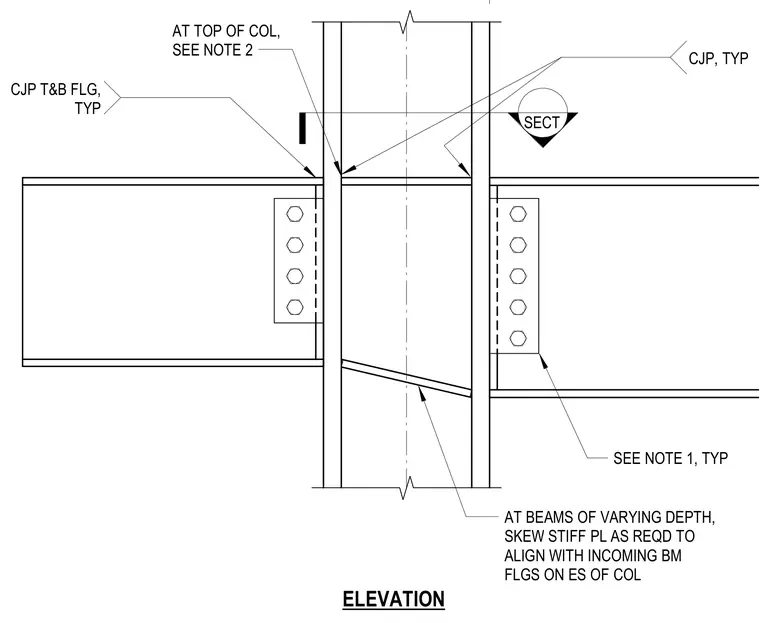

Incoming steel beams frame into a vertical steel column using bolted shear tabs while top and bottom flanges receive complete joint penetration welds. At beams of varying depths, a skewed stiffener plate is provided as required to align with incoming beam flanges on the exact sides of the column. Additional complete joint penetration welds connect the flanges typically at the top of the column.
SECT ELEVATION AT BEAMS OF VARYING DEPTH, SKEW STIFF PL AS REQD TO ALIGN WITH INCOMING BM FLGS ON ES OF COL CJP, TYP AT TOP OF COL, SEE NOTE 2 CJP T&B FLG, TYP SEE NOTE 1, TYP
