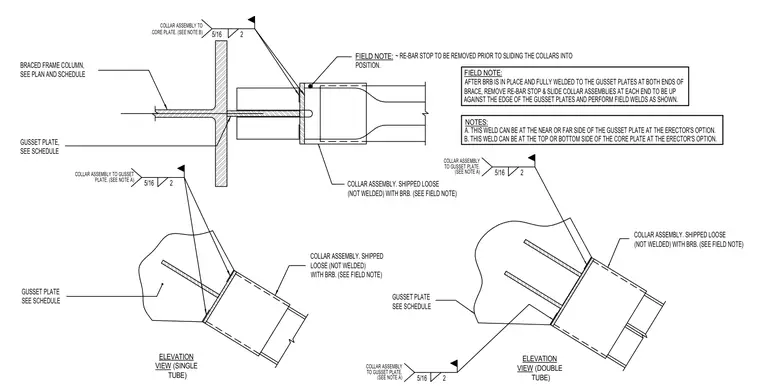

Buckling-restrained brace collar assemblies ship loose with the buckling-restrained brace and include a re-bar stop that must be removed prior to sliding the collar into position. Once the brace is fully welded to the gusset plates at both ends, the collar assembly is slid up against the edge of the gusset plates. Field welds connect the collar assembly to the gusset plate with five-sixteenths inch fillet welds on either the near or far side at the erector's option. Additional welds connect the collar assembly to the core plate with five-sixteenths inch fillet welds on the top or bottom side.
B. THIS WELD CAN BE AT THE TOP OR BOTTOM SIDE OF THE CORE PLATE AT THE ERECTOR'S OPTION. A. THIS WELD CAN BE AT THE NEAR OR FAR SIDE OF THE GUSSET PLATE AT THE ERECTOR'S OPTION. COLLAR ASSEMBLY. SHIPPED LOOSE (NOT WELDED) COLLAR ASSEMBLY. SHIPPED LOOSE (NOT WELDED) WITH BRB. (SEE FIELD NOTE) AFTER BRB IS IN PLACE AND FULLY WELDED TO THE GUSSET PLATES AT BOTH ENDS OF BRACE, REMOVE RE-BAR STOP & SLIDE COLLAR ASSEMBLIES AT EACH END TO BE UP GUSSET PLATE, BRACED FRAME COLUMN, GUSSET PLATE ~ RE-BAR STOP TO BE REMOVED PRIOR TO SLIDING THE COLLARS INTO POSITION. ELEVATION VIEW (SINGLE TUBE) NOTES: FIELD NOTE: FIELD NOTE: SEE PLAN AND SCHEDULE 5/16 2 WITH BRB. (SEE FIELD NOTE) 5/16 2 COLLAR ASSEMBLY TO CORE PLATE. (SEE NOTE B) SEE SCHEDULE SEE SCHEDULE COLLAR ASSEMBLY TO GUSSET PLATE. (SEE NOTE A) AGAINST THE EDGE OF THE GUSSET PLATES AND PERFORM FIELD WELDS AS SHOWN. COLLAR ASSEMBLY. SHIPPED LOOSE (NOT WELDED) WITH BRB. (SEE FIELD NOTE) GUSSET PLATE 5/16 2 ELEVATION VIEW (DOUBLE TUBE) 5/16 2 COLLAR ASSEMBLY TO GUSSET PLATE. (SEE NOTE A) SEE SCHEDULE COLLAR ASSEMBLY TO GUSSET PLATE. (SEE NOTE A)
