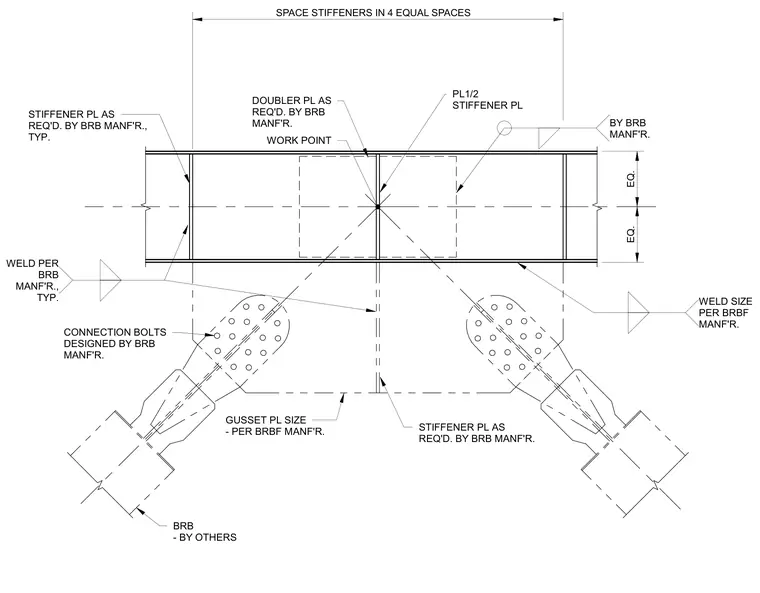

A buckling-restrained braced frame (BRBF) connection frames into a steel beam. Work points align the intersecting axes for the gusset plates, with sizing and connection bolts provided per the BRB manufacturer. Stiffener plates are spaced across four equal segments along the beam web, accompanied by doubler plates as required by the manufacturer. Welds throughout the assembly follow the manufacturer specifications.
WORK POINT GUSSET PL SIZE - PER BRBF MANF'R. STIFFENER PL AS REQ'D. BY BRB MANF'R. CONNECTION BOLTS DESIGNED BY BRB MANF'R. BRB - BY OTHERS WELD PER BRB MANF'R., TYP. STIFFENER PL AS REQ'D. BY BRB MANF'R., TYP. EQ. EQ. SPACE STIFFENERS IN 4 EQUAL SPACES DOUBLER PL AS REQ'D. BY BRB MANF'R. WELD SIZE PER BRBF MANF'R. BY BRB MANF'R. PL1/2 STIFFENER PL
