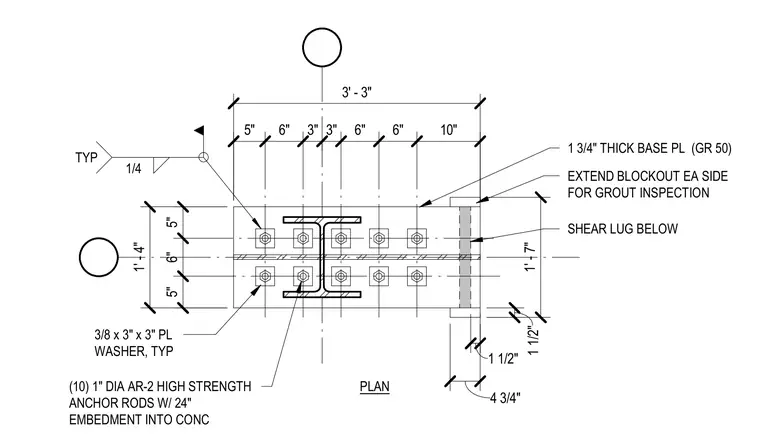

A structural steel column base plate connection plan featuring a 1 3/4-inch-thick Grade 50 steel base plate secured by ten 1-inch-diameter AR-2 high-strength anchor rods with 24-inch embedment into concrete. Each anchor rod uses a 3/8-inch by 3-inch by 3-inch plate washer. A shear lug is positioned below the base plate, and blockouts are extended on each side for grout inspection. Fillet welds of 1/4-inch size are typically applied where indicated.
1' - 4" 3' - 3" 5" 6" 3" 3" 6" 6" 10" 5" 6" 5" PLAN 3/8 x 3" x 3" PL WASHER, TYP 1/4 TYP 1 1/2" 1 1/2" (10) 1" DIA AR-2 HIGH STRENGTH ANCHOR RODS W/ 24" EMBEDMENT INTO CONC 1' - 7" 4 3/4" 1 3/4" THICK BASE PL (GR 50) SHEAR LUG BELOW EXTEND BLOCKOUT EA SIDE FOR GROUT INSPECTION
